I found a new toy! easyEDA from JLCPCB. I don’t know if I will order PCBs for my circuits, but I can document them.

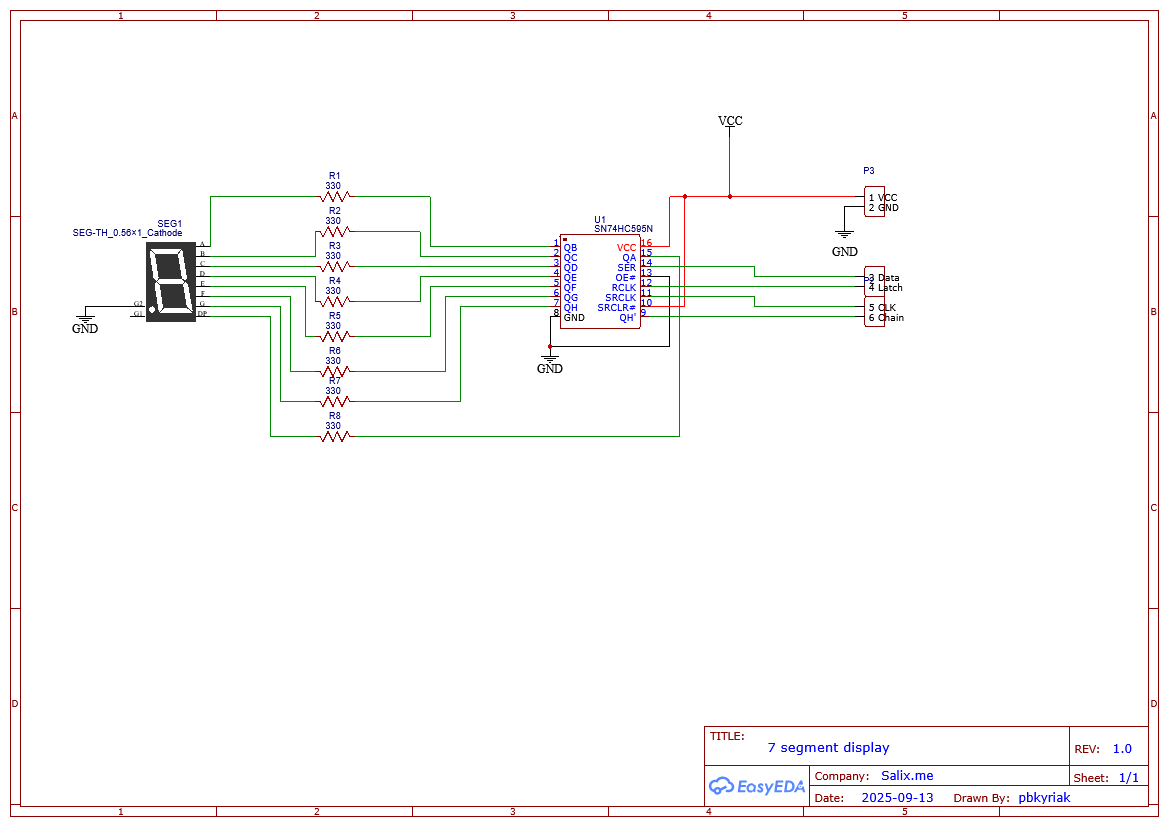

Second revision of the 7 segment display circuit. Still learning how to place things and make the circuit more readable. For sure software design rules apply here also.

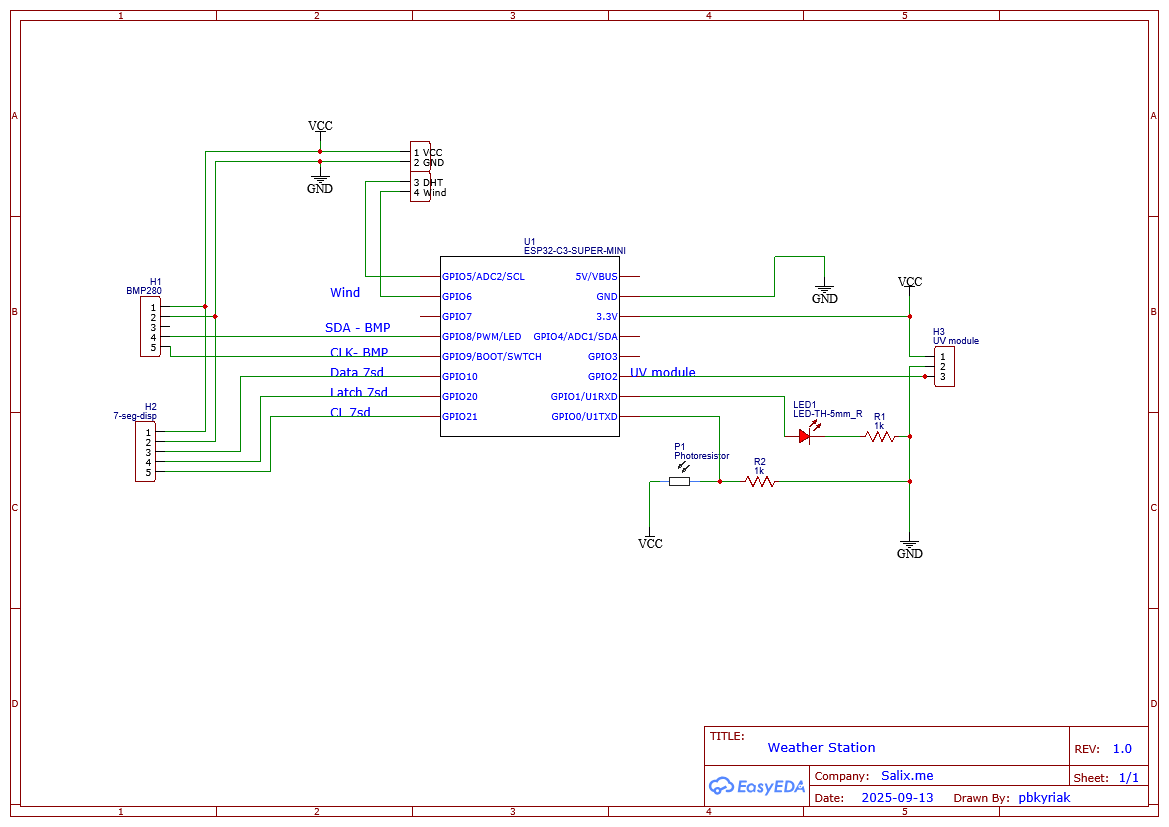

The main board of the weather station. This is not actual circuit of any of the two stations. I did a merged version of the two boards. It has features from both of them. If build a third one possibly I will implement this design.
The physical placement of the components makes the circuit a mess and I do changes all the time to make the schematic to be a schematic and not PCB design.
